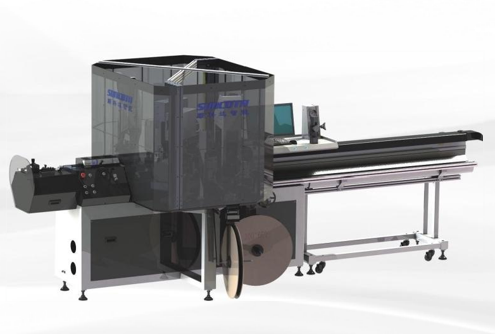

※ The maximum production speed of the equipment can reach 5500 pieces per hour (depending on the product).

※ Production task orders can be remotely received via MES.

※ Real-time production status and material usage can be remotely feedback via MES.

※ Data collection by MES: including wire length, terminal crimping data, CCD detection images, etc. can be uploaded to the server and permanently saved.

※ Data traceability by MES: each batch of wiring harnesses can have an independent code. Each data during the production process can be retrieved by scanning the barcode with a scanner, which is very convenient for traceability.

※ CCD stripping head detection: stripping length, presence of foreign objects, stripping separation, waterproof plug position, waterproof plug front and back.

※ CCD terminal detection: terminal appearance, deep pressing&shallow pressing, improper crimp barrel closure, loose wires&fly wire, wire color, etc.

※ Pressure force detection: monitoring the crimping process.

※ Raw material confirmation function: including terminals, wires, waterproof plugs, molds, etc. can be loaded through barcode comparison to ensure the accuracy of raw material usage.

※ Equipped with line length measurement function: equipped with encoder for line length measurement, real-time monitoring of line length, and real-time correction of line length.

※ Adopting high-precision, silent servo terminal machine, CNC adjustment of terminal pressing height, with pressing accuracy up to 0.01mm.

※ Adopting Japanese Keyence intelligent control system, high-performance servo motor, precise, efficient, and stable.

※The equipment is equipped with the function of quickly replacing molds. It features simple adjustment and short adjustment time, enabling rapid switching of products.

Parameters

Power:C380V 50/60Hz(TN-S)

Pressure force:5-6 kgf (requires clean air)

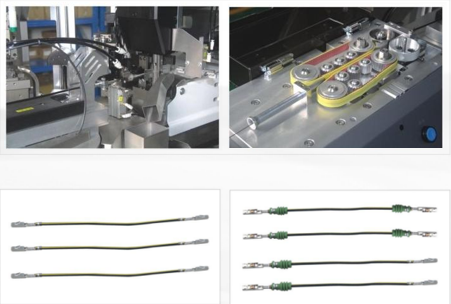

Function:Wire cutting,strip the insulation off the wire, partially strip the wire, insert the waterproof plug, make one side termination, and make two sides termination.

Range of processable wires:0.13mm²-6mm²(AWG26-AWG10)

Production Capacity:5500pcspieces per hour (depending on the product)

Cutting length:60mm-999mm

Cutting accuracy:1mm + cutting length × less than 0.1%

Gutter width:0-16mm

Crimping capacity:2.5 TX2 units

Water Stopper: 2 unit (can be installed with 0 to 2 water stoppers as per customer requirements)

Size:4800*1600*2000mm(excluding protrusions)
