※ The maximum speed of the equipment can reach 3000 pieces per hour (depending on the product).

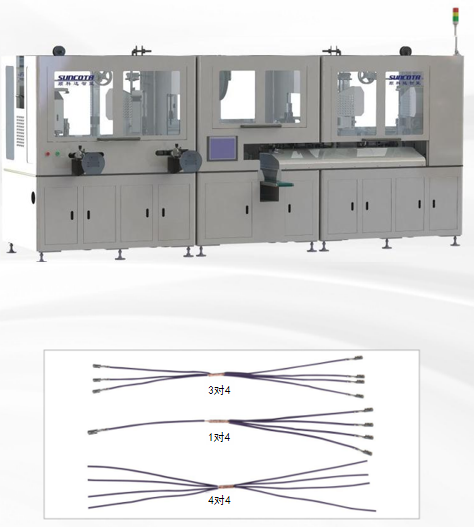

※ Pairing options: 1 vs 1, 1 vs 2, 1 vs 3, 1 vs 4, 2 vs 2, 2 vs 3, 2 vs 4, 3 vs 3, 3 vs 4, 4 vs 4;.

※ It can process 4 different specifications (colors) of wires simultaneously.

※ It can process 4 different terminals simultaneously.

※ CCD terminal detection: terminal appearance, deep pressing and shallow pressing,  improper crimp barrel closure, loose wires, wire color, etc..

※ Pressing force detection: monitoring the pressing process.

※ Adopting the intelligent control system from Japan Keyence, high-performance servo motor, precise, efficient and stable.

Parameters

Power supply:AC 380V/ 50/60Hz（TN-S）

Air pressure:5 - 6 kgf (Requires clean air)

Function:Wire cutting, one side stripping, two sides stripping, one side waterproof plug, one side compression, one side welding

Wire color:4 colors

Quality detection:Wire quantity, wire connectors, terminal presence, pressure management system, CCD core wire detection, CCD stripping head detection, CCD waterproof plug position detection, CCD terminal appearance detection system

Processing wire range:0.13mm²-2.5mm²(AMG26-AMG11)

Production capacity: 3000 pieces per hour (depending on the product)

Cut length:180mm-9999mm

Output:1mm + cutting length × less than 0.1%

Gutter width:0-16mm

Pressing capacity: 2.5TX4 units (can be installed with 2 to 4 units according to customer requirements)

Water Stopper: 1 unit (can be installed with 1 to 2 water stoppers as per customer requirements)

Mechanical dimensions: Length 4500mm × Width 1100mm × Height 1900mm (excluding protrusions)
